Sauna Bath Small Commercial Electric Water Boiler Intelligent Automatic Control

Name: Sauna Bath Small Commercial Electric Water Boiler Intelligent Automatic Control
Brand: WILFORD
Price: 1 USD

Quality Sauna Bath Small Commercial Electric Water Boiler Intelligent Automatic Control for sale

Brand Name : WILFORD

Model Number : CLDR

Certification : CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Packing in wooden box

Rated thermal power : 0.12-0.23MW

Total heating capacity : 100000-200000kcal

Input power : 120-240KW

Input current : 180-360A

Dimension(L*W*H) : Depends

Weight : 245-340kg

Contact Now

Automatic Control Small Electric Hot Water Boiler For Sauna Bath

Product introduction

This is a truly green, pollution-free boiler that meets customers' needs for hot water and heating.

Mechatronics integrated structure, the whole fast loading factory, transportation and installation are very convenient.

In order to ensure the safe and long-term operation of the boiler, we use imported alloy steel material electric heating tube or high quality stainless steel heating tube, which has long service life and durability.

The electromagnetic controller selected by the boiler has perfect control system and complete functions.

Intelligent automatic control, no need for special staff monitoring, to some extent to avoid human error.

In order to ensure the safe use of the equipment, it is equipped with a complete protection device, which is safe and reliable.

Parameter

			CLDR0.12-95/70	CLDR0.17-95/70	CLDR0.23-95/70
Project		Unit	CLDR0.12-95/70	CLDR0.17-95/70	CLDR0.23-95/70
Rated thermal power		MW	0.12	0.17	0.23
Total heating capacity		104kcal	10	15	20
Rated working pressure		MPa	Ordinary Pressure
Input Power		KW	120	180	240
Input current		A	180	270	360
Rated Voltage		V	3N AC 50HZ 380V
Power×Group		KW×P	20×6	30×6	30×8
Water inlet diameter		DN	65	65	65
Water outlet diameter		DN	65	65	65
Blowoff valve diameter		DN	25	25	25
Overall size	Length	mm	920	960	1050
	Width	mm	820	860	970
	Height	mm	1200	1400	1510
Weight		kg	245	310	340

Feature

1 . Environmental protection, thermal efficiency up to 98%

2 . The heating tube is imported alloy steel material or stainless steel

3 . Electromagnetic controller (frequent action 1000000 or more)

4 . Standard control cabinet, advanced technology

5 . Various alarm interlock protection devices

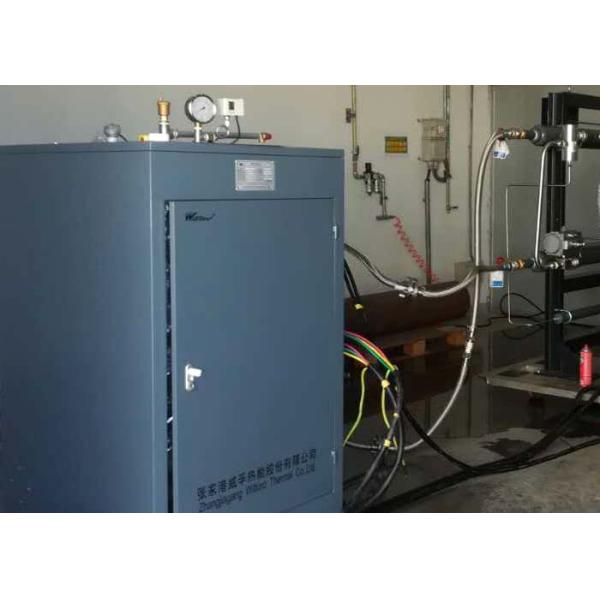

Product picture

Project case diagram
